SMI 600-NVS

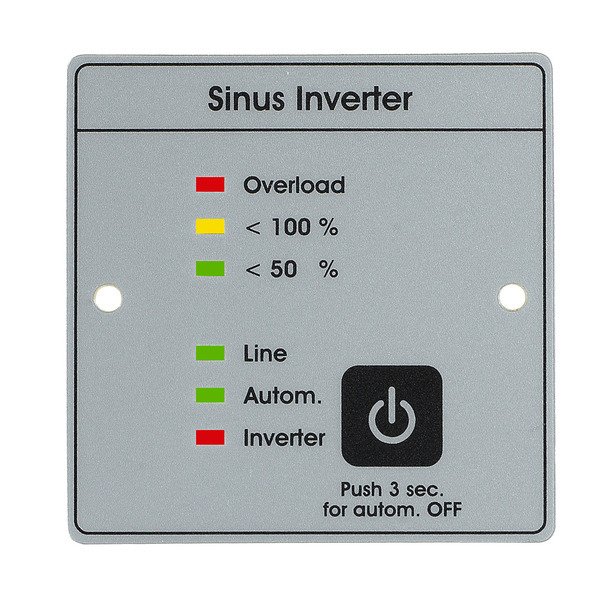

Compromise and trouble-free, trouble-free operation of all mains-powered devices, such as medical equipment, radio, charging holders (cell phone, radios, hand lamps, batteries, etc.), laptop, PC, air conditioning, coolers, power tools (drill, angle grinder, etc), TV, SAT, TFT, microwave, coffee machine, hair dryer, fan, lights, vacuum cleaner, refrigerator, etc.Pure sine wave so that the output voltage is supplied with high mains voltage quality. Includes user-friendly control panel for flexible installation, rotated or remote control depending on the desired installation position.Further specifications:Nominal battery voltage (DC) in [V]: 12Output voltage (AC) in [V]: 230 pure sineOutput frequency: 50 Hz crystal stabilizedEfficiency: > 93 %Output power continuous in [W]: 600Output power short / peak in [W]: 840 / 1200Minimum battery capacity (recommended) in [Ah]: > 80Current consumption (DC) at rated power in [A]: 56Battery overvoltage max. [V] 16Battery undervoltage min. in [V]: 10.5Own consumption in [W]: 6 (switched on, no load)Own consumption in standby in [W]: 5 (no load)Battery connection cable: 10 mm2, 1.2 mTemperature range [°C]: -20 to +45Degree/class of protection: IP 21Dimensions (WxHxD) in [mm] - Dimensions incl. mounting flanges and connectors: 139 x 74 x 332Weight in [g]: 2300Standards (CE): EN 60950Environmental conditions: Humidity: max. 95% room humidity, non-condensingOutput voltage with mains voltage quality (pure sine)Output frequency crystal stabilized, exact compliance with the "mains frequency".Power saving control with automatic switch-off (automatic mode)Display panel can be rotated 360° and used as remote controlPowerfully dimensioned, robust and compact, high operational reliabilityAutomatic shutdown in case of battery undervoltageAutomatic shutdown in case of battery overvoltageIntegrated overload protection of the automatic mains switchover by 10 A automatic circuit breakerElectronic and thermal overload protectionSwitched version (switch mode)
