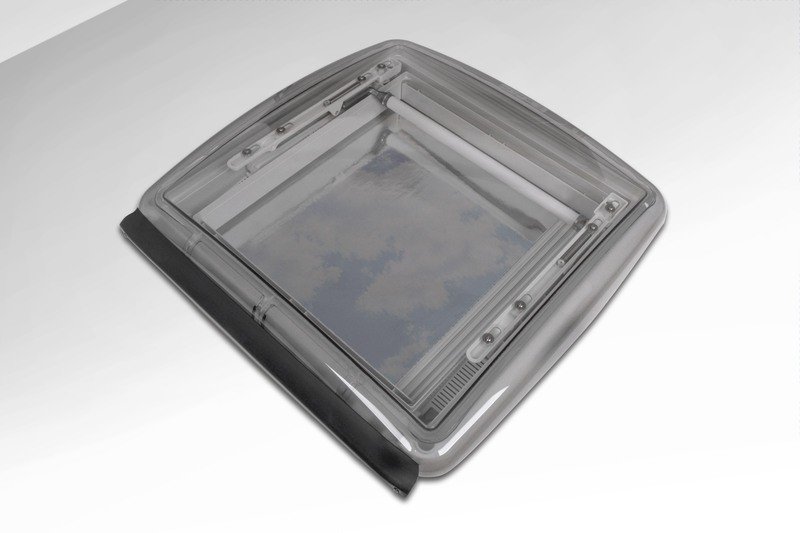

roofSTAR 4 roof hood (400 x 400 mm), RoofSTAR 4 ZWL+LED

The roofSTAR 4 roof hoods were specially developed to meet the highest demands. They combine a completely new, innovative design with simultaneous weight savings. The extremely flat design also significantly improves aerodynamics, wind resistance and noise development while driving.

Product features:

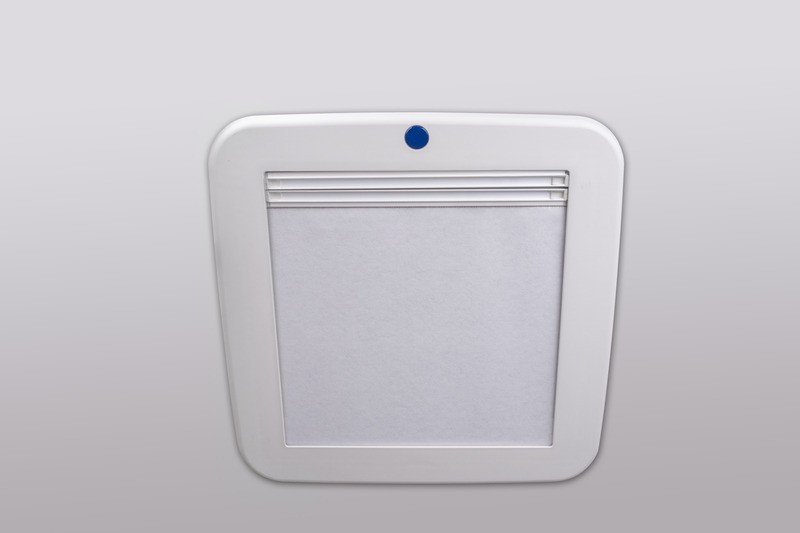

- Effective blackout: Integrated roller blind system, which guarantees effective blackout.

- Flexible: roofSTAR 4 roof hoods can be easily retrofitted.

- Water management: a lot of time has been invested in an effective water drainage system.

- Spoiler effect: the standard rubber sealing lip on the hinge side prevents the entry of gushing water and effectively minimizes driving noise.

- Extremely flat: The external height has been reduced by 50% to just 72 mm.

- Particularly light: The weight has been reduced by up to 2 kg.

- Unique: For the first time, a motorized version is available for the 400 x 400 mm dimension.

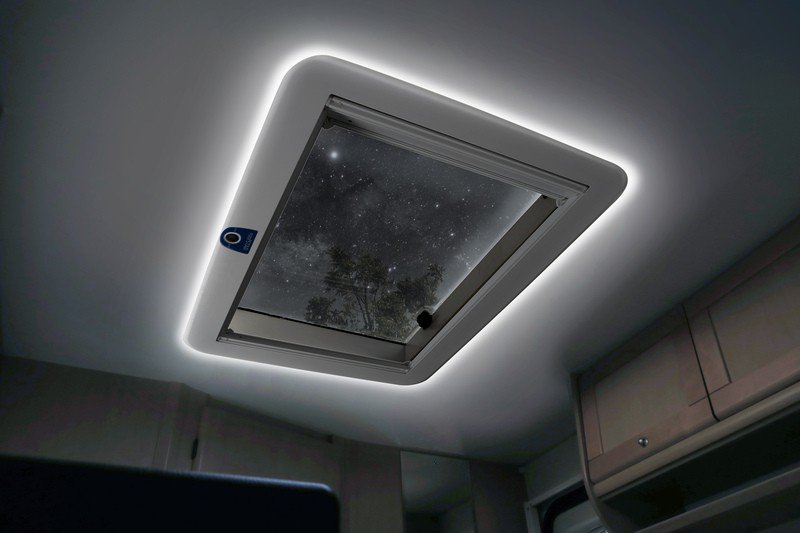

- With or without lighting: High-quality LED lighting is optionally available for the roofSTAR 4.

Specifications:

Cut-out dimension: 400 x 400 mm

External dimensions: 502 x 511 x 72 mm

Internal dimensions: 516 x 513 x 26 mm

Opening positions: 3

Opening mechanism: operating bracket or integrated motorization

Max. Opening angle: 60°

Roof thickness: 25 -32 mm (optional accessory kit 362001 for roof thickness 33 - 45 mm)

Forced venting: 0 or 150 cm²

Lighting: optional

Weight: 3.7 kg

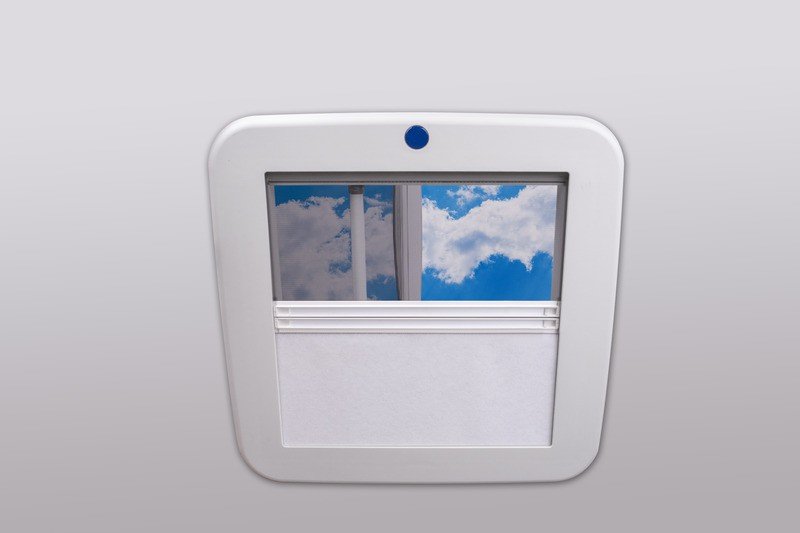

• Including interior frame with blackout and flyscreen blinds
• Extremely flat design
• Improved aerodynamics reduces noise during the ride
• Effective water drainage system
• Particularly stable and durable thanks to UV-resistant ASA and PMMA material
• Quick, easy and user-friendly assembly
• ECE R43 tested
