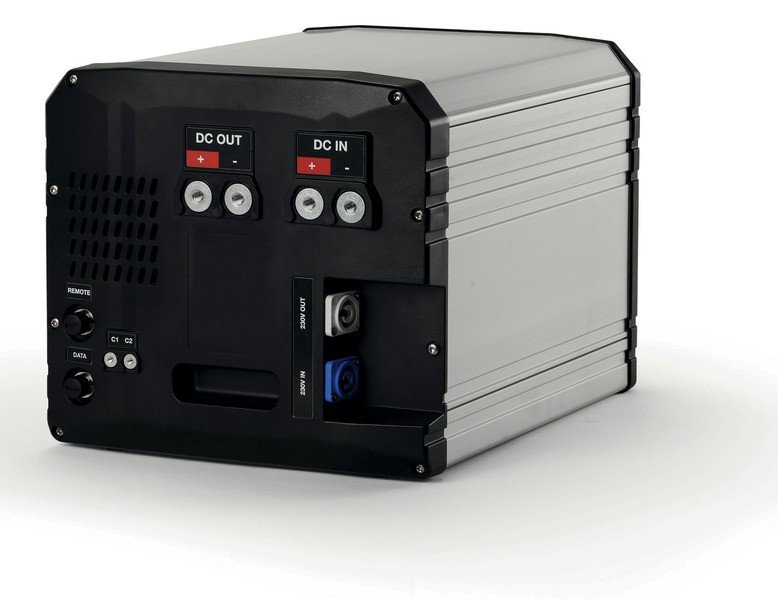

Lithium Power Supply II - LPS II 2512-100

The Lithium Power Supply II (LPS II), the successor model to the popular LPS, has been significantly improved in many features. With the improved complete solution based on the latest lithium technology, not only is its own power consumption significantly reduced, but among other things, very fast charging while driving is also possible. The operation of large consumers with high starting currents is also ensured. Despite comparable dimensions to the predecessor LPS, numerous new features and functions are integrated and higher performance is possible.

The integrated solar charge controller (MPPT) is fed via solar panels and thus charges the connected battery. The intelligent charge control thereby ensures effective charging, so that the charging time is minimized and the battery is charged as gently as possible. It also protects against overcharging and thus ensures a long battery life.

Further specifications:

• Capacity: 100 Ah (1320 Wh)
• Available capacity: 80 Ah (1050 Wh)
• Output power (AC), continuous: 2000 W
• Output powering (AC), peak (10 min): 2500 W
• Output powering (AC), peak (10 s): 4000 W
• Output discharge current (DC), continuous: 180 A
• Output discharge current (DC), peak (1 min): 270 A
• Output power solar (max.): 400 W
• Own consumption (DC Out active): <1 W
• Ingress Protection: IP21

• Euro-6 optimized supercharging via vehicle engine
• Connections for 12 volt and 230 volt consumers
• Integrated solar charge controller (MPPT), inverter, battery management system and charge booster
• Very short installation time of less than two hours
• Compact design
• Extreme weight savings (> 75 % compared to conventional systems)
